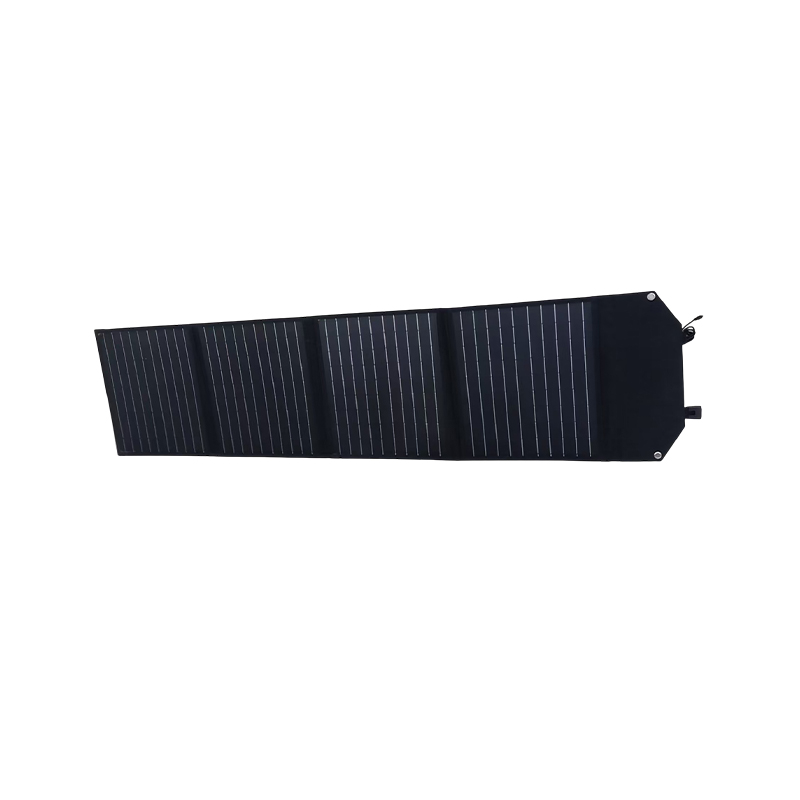

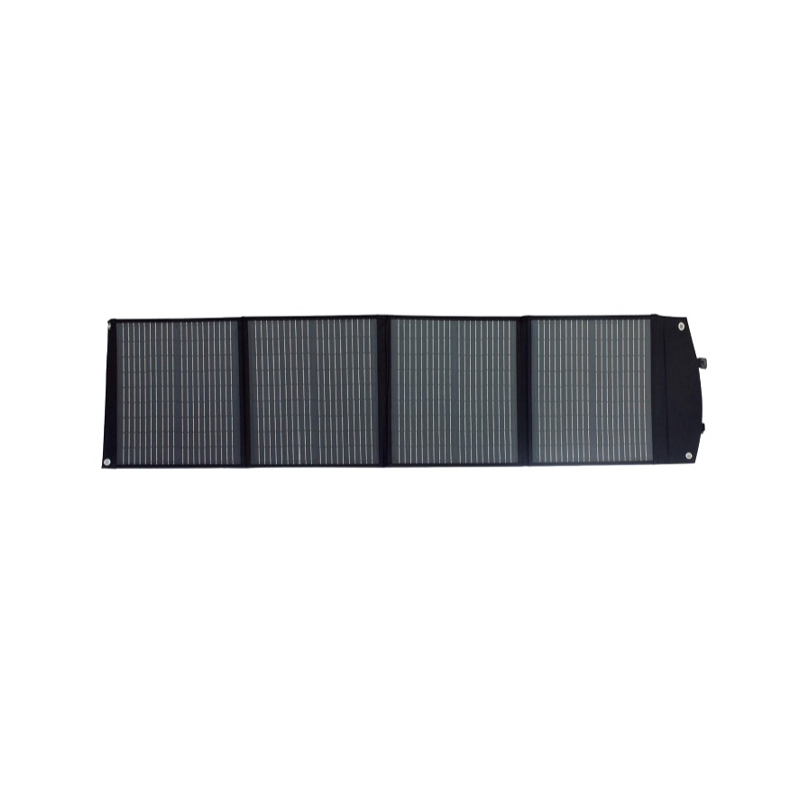

Portable Foldable Solar Panel

120W
Customized according to drawings
PV module dimension Specification
Expanded dimension: 1905*470*25mm
Folded dimension:470*435*50mm
Product weight: 4.7KG
parameters of PV module
Output power(@STC):120W±5%
Open circuit voltage(@STC):24V±5%
Rated operating voltage (@STC):19.8V±5%
Rated operating current)@STC):6A±5%
Short circuit current (@STC):6.3A±5%
Note: STC: Standard Tested Condition(AM=1.5, 25°C,1000W/m²)
Output port: 1*DC, 1*USB, 1*TYPE-C, 1*XT60,1*USB fast charging
×
