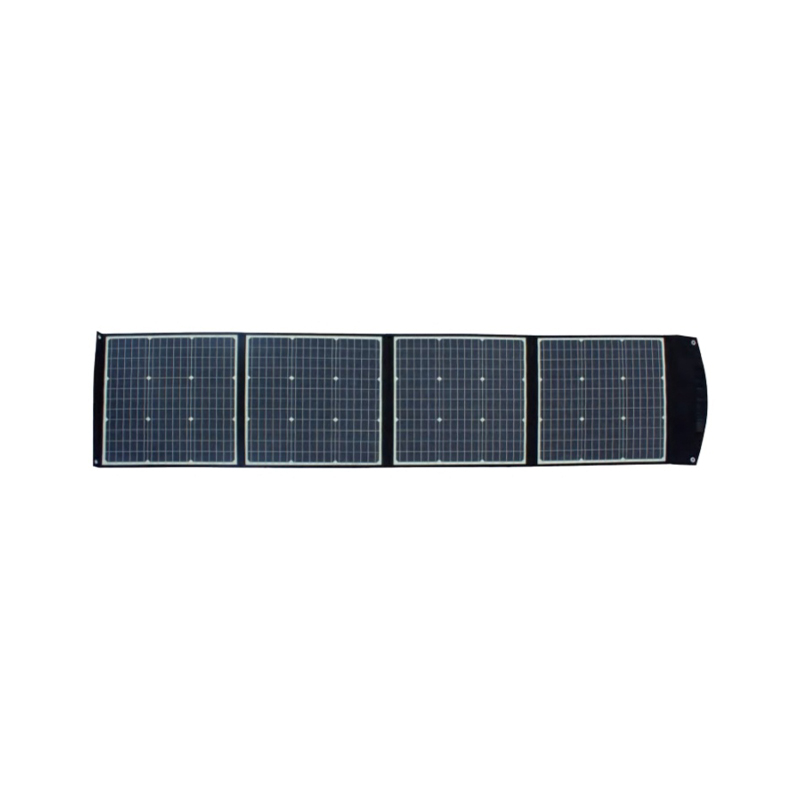

Portable Foldable Solar Panel
200W
Customized according to drawings
PV module dimension Specification
Expanded dimension: 2460*540*25mm
Folded dimension: 540*580*60mm
Product weight: 8KG
Output power(@STC):200W±5%
Open circuit voltage(@STC):24V±5%
Rated operating voltage (@STC):19.8V±5%
Rated operating current)@STC):10.1A±5%
Short circuit current(@STC):10.6A±5%
Note:STC: Standard Tested Condition (AM=1.5,25C, 1000W/m²)
Output port: 1*DC, 1*USB, 1*TYPE-C, 1*XT60,1*USB fast charging
