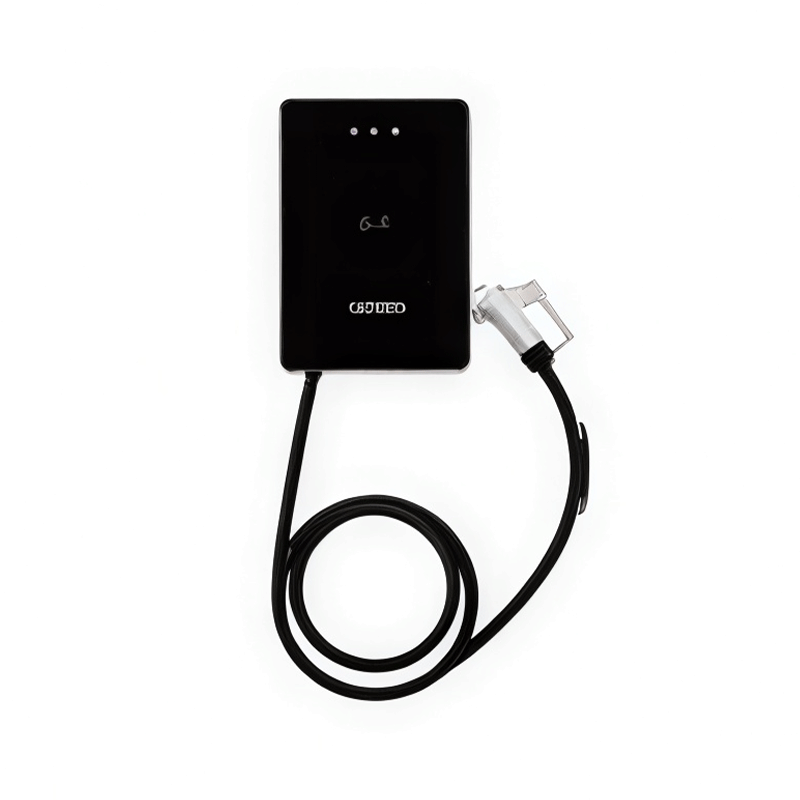

20kW DC charger | |||
Product Version | Home Version | Home Version | Operational Version |
Product Model | LSDCI-C-20/750-A01 | LSDCH-C-20/750-A02 | LSDCI-C-20/750-Y02 |
Rated power | 20kW | ||
Maximum output current of a single gun | 60A | ||
Product weight | About 45kg (excluding column) | ||
Design standards | GB/T18487、GB/T20234 | ||
Number of guns | Single Gun | ||
Body size | 450*650*216mm(W*H*D) | ||
Human-Machine Interface | not | 7-inch touch screen display | 7-inch touch screen display |
Networking | not | 4G (optional), Ethernet (standard) | 4G (optional), Ethernet (standard) |
Charging mode | Automatically fill up, by time | Automatically fill up, by time | Automatically charge, by time, by power, by amount |
Startup method | Plug and charge, swipe card to start | Plug and charge, swipe card to start | IC card, WeChat QR code, VIN, password |
Cloud Platform | not | not | Supports cloud fast charging, Weijing Cloud, Dak Cloud, e-charging |
Protection function | Short circuit, overcurrent, overtemperature, leakage, overvoltage, undervoltage, etc. | ||
Input voltage | AC380V±20% | ||
Input frequency | 50Hz±10% | ||
Gun line length | 5 meters (standard) | ||
Output voltage range | DC150-750V continuously adjustable | ||
Output voltage error | ≤±0.5% | ||
Output current error | ≤±1% | ||
Harmonic content | ≤5% | ||
Power Factor | ≥0.99 | ||
Efficiency | ≥95% | ||
Energy metering | Level 1.0, in compliance with GB standards | ||
Insulation resistance | ≥20M2 | ||
Noise | ≤60dB | ||
Protection level | IP54 | ||
Cooling method | Air cooling | ||
Operating temperature | -20°C~+50C | ||
Storage temperature | -40C~+70C | ||
Relative Humidity | 5%-95% non-condensing | ||
Altitude | ≤2000m | ||
Installation | Wall/pole installation | ||
